The length of the Windone K2 Fat Tire Electric Bike is 67.3'' inches, the width is 27.5'' inches, and the height is 43'' inches. It fits men up to 6'88 feet and women up to 5'58 feet.

Windone K2 Fat Tire Urban Explorer

CA$2,568.00 CA$4,152.00

Save CA$1,584.00

Purchase Option:2-Pack K2

Variant

Quantity:

Use Code: W50 To Get CA$50 Off!!

Unlock Your First Order Discount: Save CA$30 with Code

Local Fulfillment in Canada: Delivered in 3-5 Business Days

90% Pre-Assembled and Easy Setup: Watch the Assembly Video >

Free Shipping & No Sales Tax or Hidden Fees

Need help? Contact us at support@windone.com

⚠

Please follow local Ebike laws and wear a helmet for safety!

SPECIFICATIONS

48V 13Ah

75 KM (PAS)

750 W

Motor(Peak)

20*4"

Fat Tire

45KMH

PEDAL ASSIST

Suspension

Front & Seat

330 lbs.

Payload Capacity

Performance

Top Speed 32KMH/20MPH Throttle Only, 45KMH/28MPH Pedal Assist

Range 45KM throttle only, 75KM pedal assist

Charge Time 6-7 h

Battery 624 Wh (48 V 13 Ah)

Motor 500W (750W Peak)

Throttle Full Twist Throttle

Riding Modes pedal assist mode, full electric mode, pedal mode

Derailleur gears: 7-Speed Shifting Gear

Waterproof Class IPX5(Battery) IPX4 (Bike)

Hill Climbing 20%

Dimension & Fit Size

Bike Weight 88lbs

Weight Capacity 330 lbs

Rider Height Range5'7"-6'7"

A - Total Length 67.32 inch

B - Handlebar Height 42.91 inch

C - Wheelbase 43.70 inch

D - Seat Height 34.2 inch

E - Handlebar Width 27.55 inch

F - Saddle Length23.62 inch

FRAMESET

Frame Iron

Suspension Front & Seat

Brakes Front and rear hydraulic brakes

Tires 20 X 4 In Air-full Tire | Fat Tire

Lights & Horn

Head Light LED

Tail Light LED

Horn Yes

Assembly Guide

Manual & Owner Documents

What is inside of the package

Bike 1

Charger 1

Air Pump 1

Installing Tool 3

Battery Key 2

Pedal (R and L) 2

Hexagon Wrench 6

Manual 1

Phillips Screwdriver 1

Seat Cushion Shock Sbsorber 1

Front Wheel Shaft 1

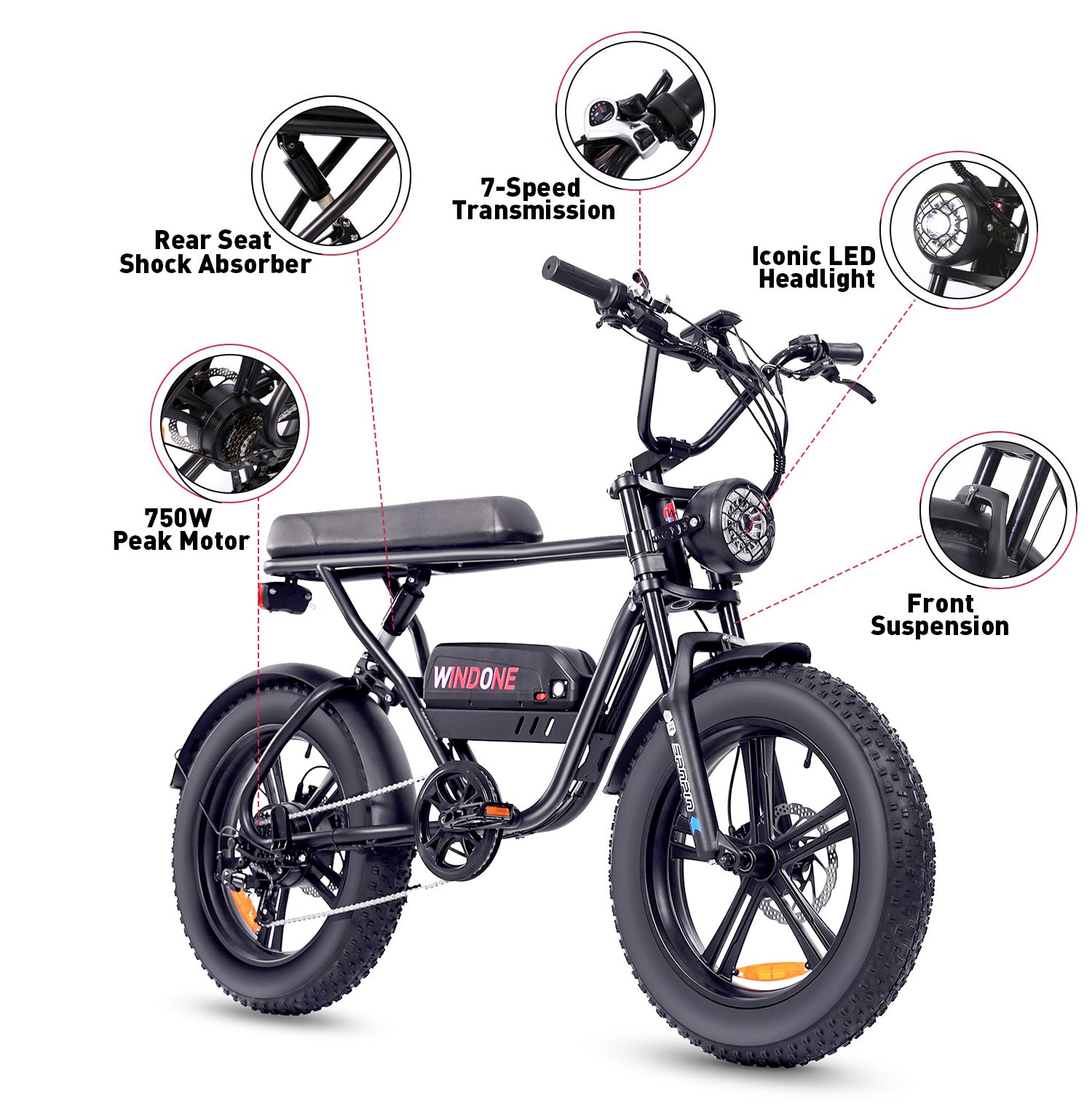

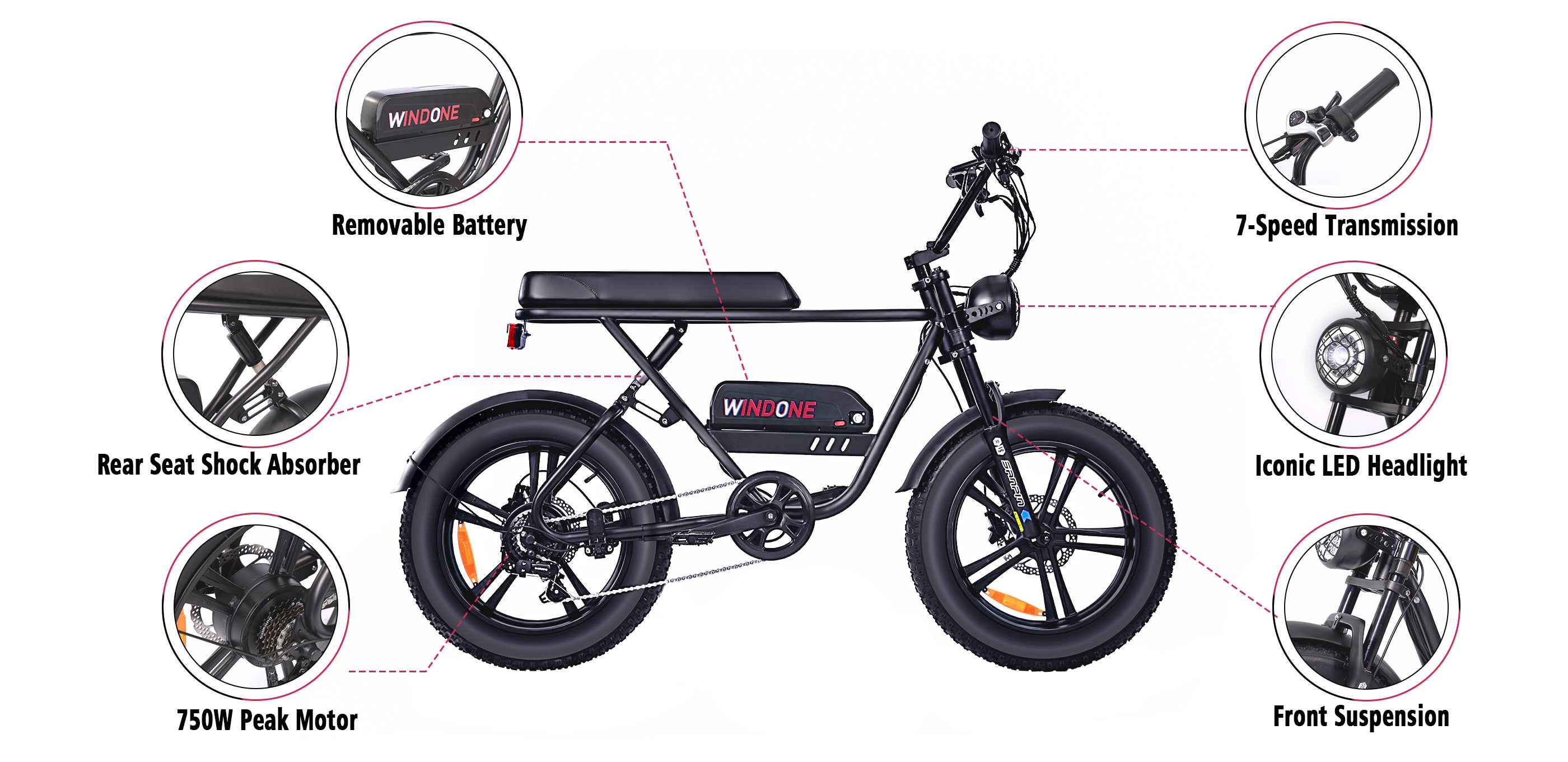

80mm Suspension Travel

The Windone K2 has 80mm of suspension travel, designed to keep you comfortable on all terrains. Easily handle rocks, tree roots, and bumpy roads, the suspension will take care of every bump along the way.

Shock-Absorbing Rear Suspension

The Windone K2 has a rear seat suspension with a 165mm center distance and a 1200 lbs capacity for excellent comfort and stability. With a seat length of about 23.6 inches, it absorbs shocks and vibrations, ensuring a smooth ride on rough terrain while reducing discomfort and fatigue.

Dual Hydraulic Disc Brakes

Designed for smooth and reliable stopping, they evenly distribute brake fluid for improved control and performance on all your rides.

23.6-inch Comfortable Seat

The K2 comes with an extra-long comfortable seat, letting riders find their ideal riding position based on height. It also includes passenger footrests, making it easy to take a friend along for the ride. So, invite your partner and set off on your adventure together!

20"x4" Fat Tires

Enjoy unmatched comfort and stability with the 20"x4" fat tires. Built for high performance, they offer excellent traction and control on all terrains, ensuring a reliable ride for any adventure.

Eye-Catching Headlight

Features a significantly larger headlight compared to other e-Bikes. Its strikingly bold design is not only stylish but also exceptionally bright, ensuring you stand out and see clearly on every ride.

75 KM Range Removable Battery

Designed with a USB charging port for your devices on the go. The Windone E2 features a removable 624 Wh battery, offering up to 45 km of range and 75 km with pedal assist, so you can easily swap or charge it for your next adventure.

750W Peak Power Motor

With a powerful 500 watts of continuous power and a peak of 750 watts, along with a 48V battery and five customizable pedal assist levels, you can easily tailor your performance for rugged trails or daily commutes.

Easy-To-Read Display

The full-color display provides a complete overview of your ride, showing key metrics like speed, distance, pedal assist level, and more, all in vibrant and easy-to-read colors.

Conquer the road with Windone

Tire type

20" X 4" fat tire, anti-slip and anti-puncture, makes your conquer all road not only the city street but also the terrain, mountain road, beaches, snow road and so on. You can really explore the world in all seasons. Not all of us can reach the whole world, but we can measure the it by our own way.

Double the joy, double the fun

With luxury-lounge long PU memory foam seat, comfortable passenger footrest, K2 ebike maximize comfort. So, get ready to feel like you're sitting on a cloud, even on those long-haul city excursions. Bid farewell to fatigue and say hello to comfort like you've never known it.

Fabulous Experience

K2 fat tire urban explore electric bike features front and seat shock absorption, vibrant LCD display, ensuring a smooth, comfortable ride. Conquer any terrain with confidence!

High Performance

Motor to 750W Peak, 624 Wh removable battery provide sufficient power to ride to more than 45 kilometers with 45 km/h (75 kilometers for PAS). A detachable battery is essential for an e-bike, especially in some apartments where e-bike is not allowed to be charged inside.

Comfort is king on the Windone E2, thanks to its large and supremely comfortable seat. This throne-worthy perch ensures that even the longest rides and steepest climbs remain enjoyable.

-- The Gadgeteer

Windone caters to various riding styles and needs, as embodied by its E2 and K2 Fat Tire Electric Bikes. These e-bikes boast high performance, run at fast speed, and promise comfort through every terrain.

-- Jules R.

Windone E2 bike is an excellent choice for those riders who may encounter a variety of riding terrains. The suspension and rugged tires make for a smooth ride, and the lighting makes it possible to enjoy this bike day and night.

--Rashan Dixon

Can my electric car business survive?

Electric SuperCar

UNEXPECTED DELIVERY MYSTERY PACKAGE Windone K2

Jared and Britt

STATE OF EBIKES - BUY or DIY? 2024

EBikeBuilder

I Can't Believe This E-Bike Is Under $800 | WindOne K2

Volted Adventures

Windone K2 Review: The Budget Moped Style eBike with Hydraulic Brakes

Scott Hardesty

WINDONE K2 FAT TIRE EBIKE

Ad-van-tures Over 50

Always interest-free when you

pay it in 4 installments.

Learn More

Always interest-free when you

pay it in 4 installments.

Learn More

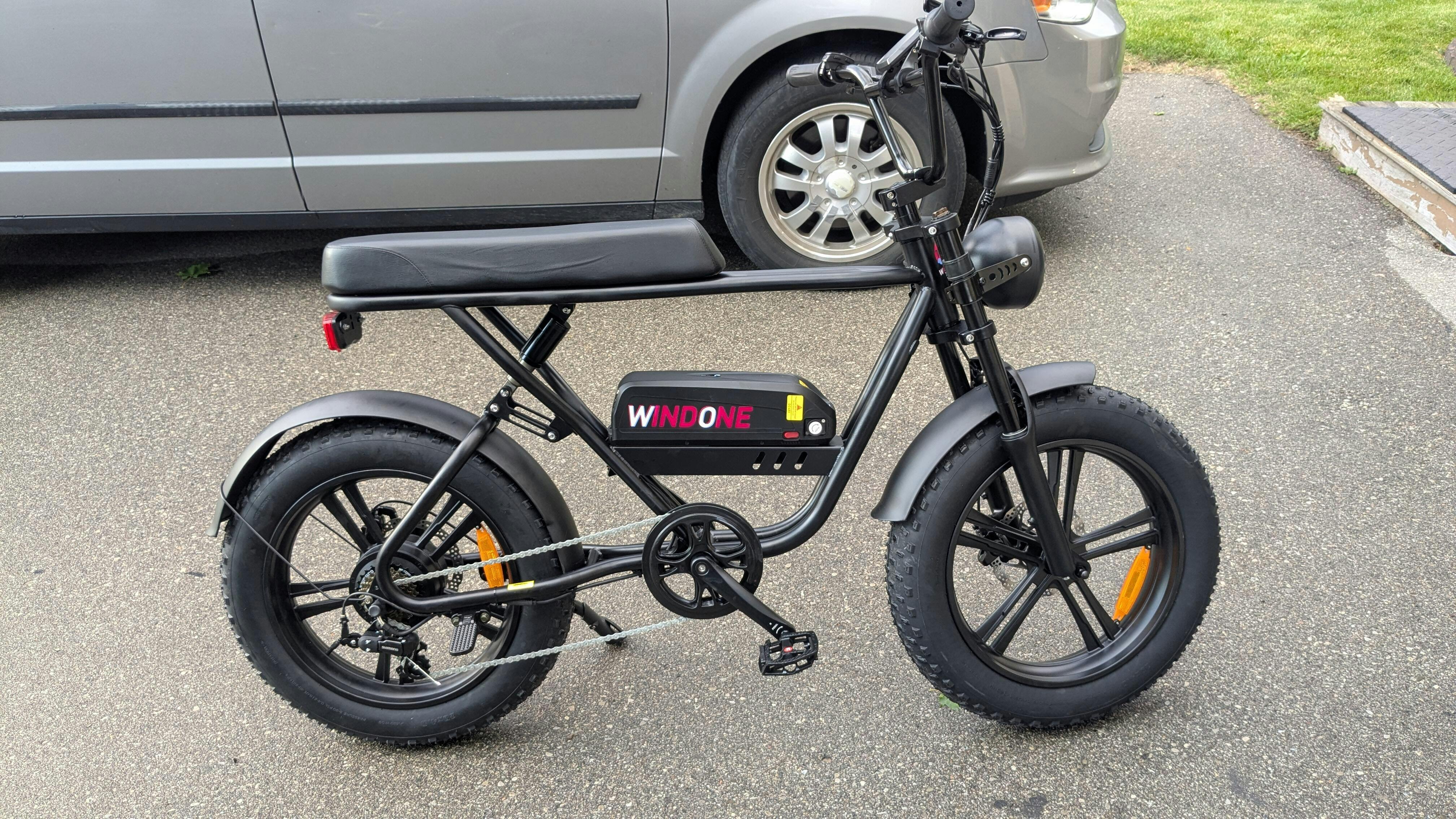

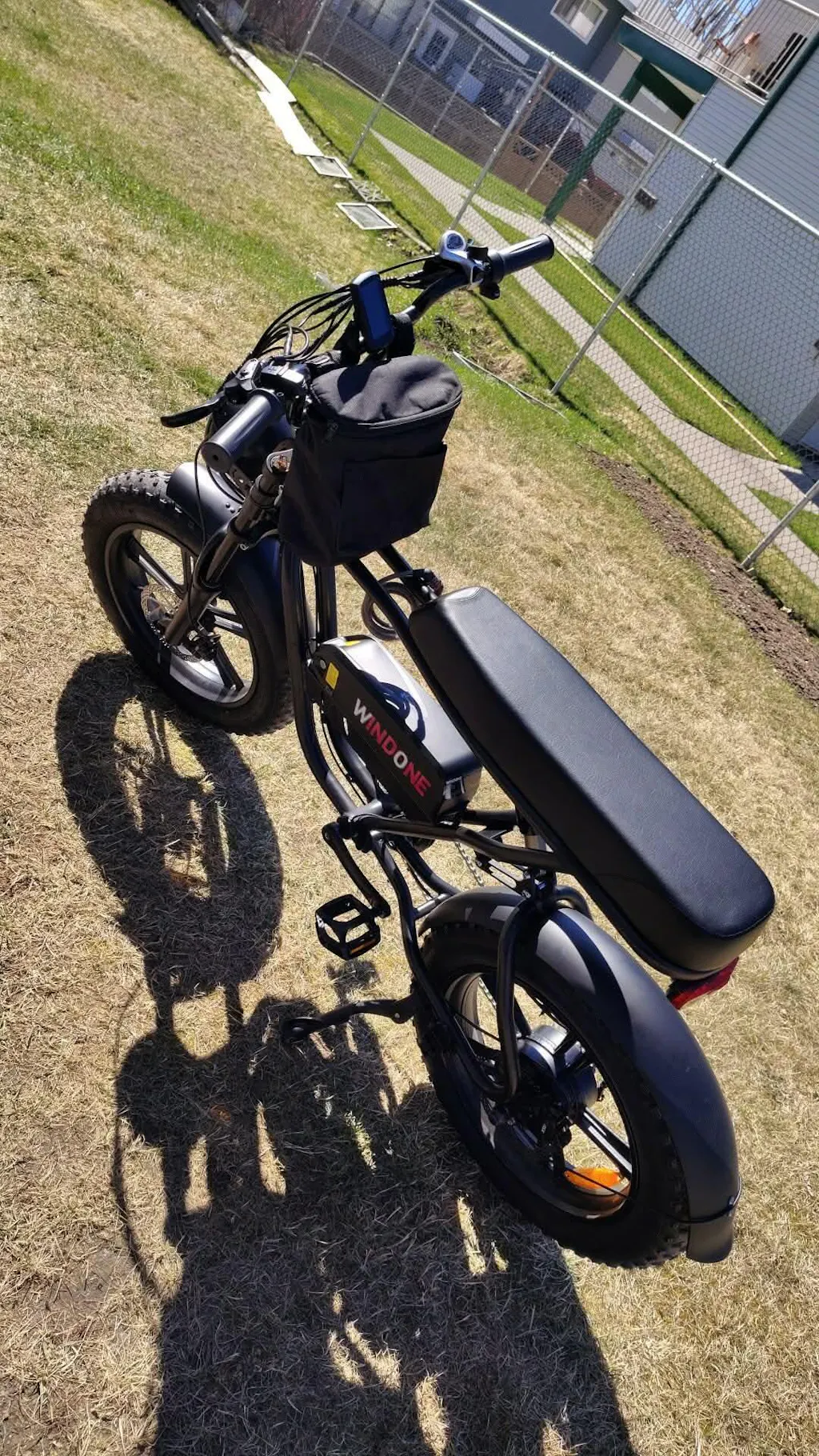

So far , so good.

Prompt delivery. Easy final assembly. I live in CANADA and havent had a chance to ride it yet. Weather permitting.

Great performance

This is a well built machine with quality parts and systems. Most e-bikes are smaller with the 20" tires, but this bike here allows you to take on just about any ride ( killer distance!) be it on the street/ road or in terrain like sand or dirt!

I'm more interested in these two parts

Acceleration:
Acceleration is smooth and responsive, making it easy to get up to speed quickly, especially from a stoplight. The pedal-assist feature kicks in nicely, providing a boost when you need it.
Range:
With a range of approximately 30-46 miles on a single charge, the Windone K2 is ideal for daily commutes and short trips. Factors like terrain, rider weight, and assist level can affect this range.

It's a comfortable ride!

The seat is well-padded, providing comfort over longer rides. The upright riding position reduces strain on the back and shoulders, making it suitable for casual rides.The front and rear shock absorbers are designed not to be uncomfortable even on bumpy roads.

MOTOR&RANGE

750W motor offers ample power for city riding and light off-road trails. It operates quietly, making for a more pleasant ride without distracting noise.With a range of 25-46 miles on a full charge, the K2 is versatile for both short commutes and longer rides. The actual range depends on factors like rider weight, terrain (flat vs. hilly), and the level of pedal assist used.
